Project Description

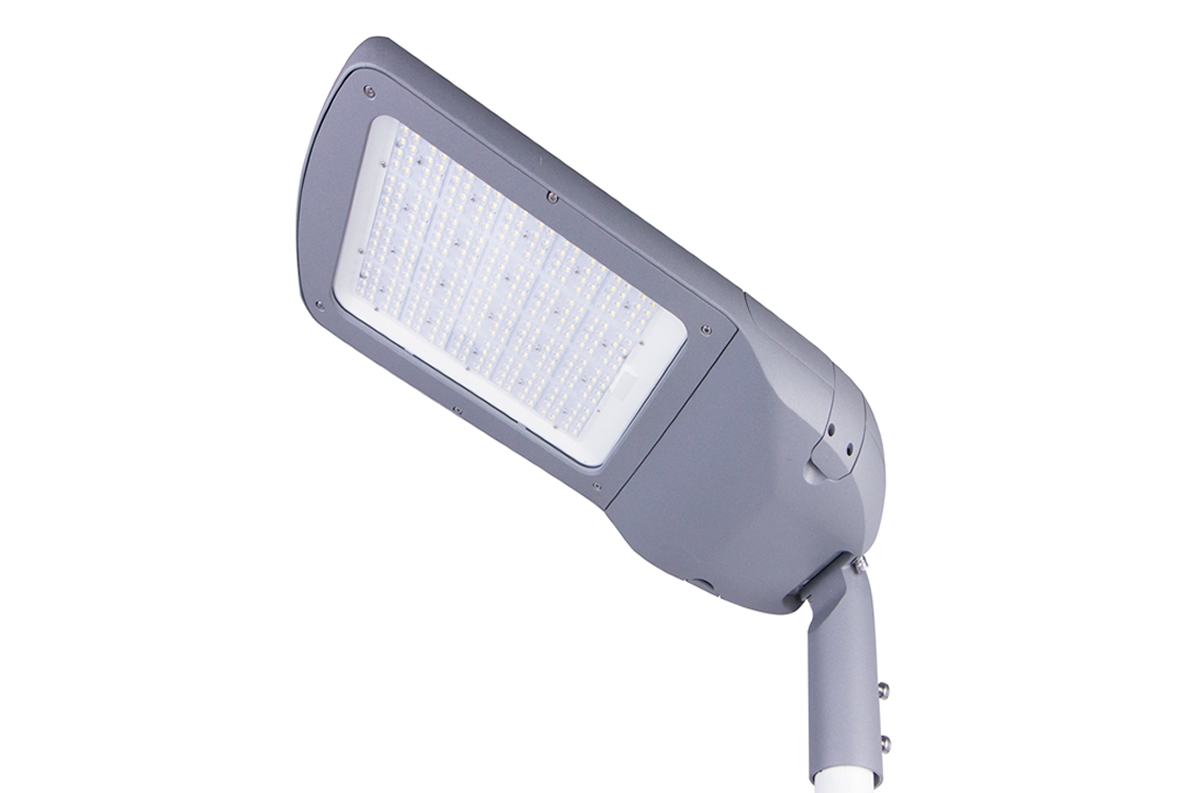

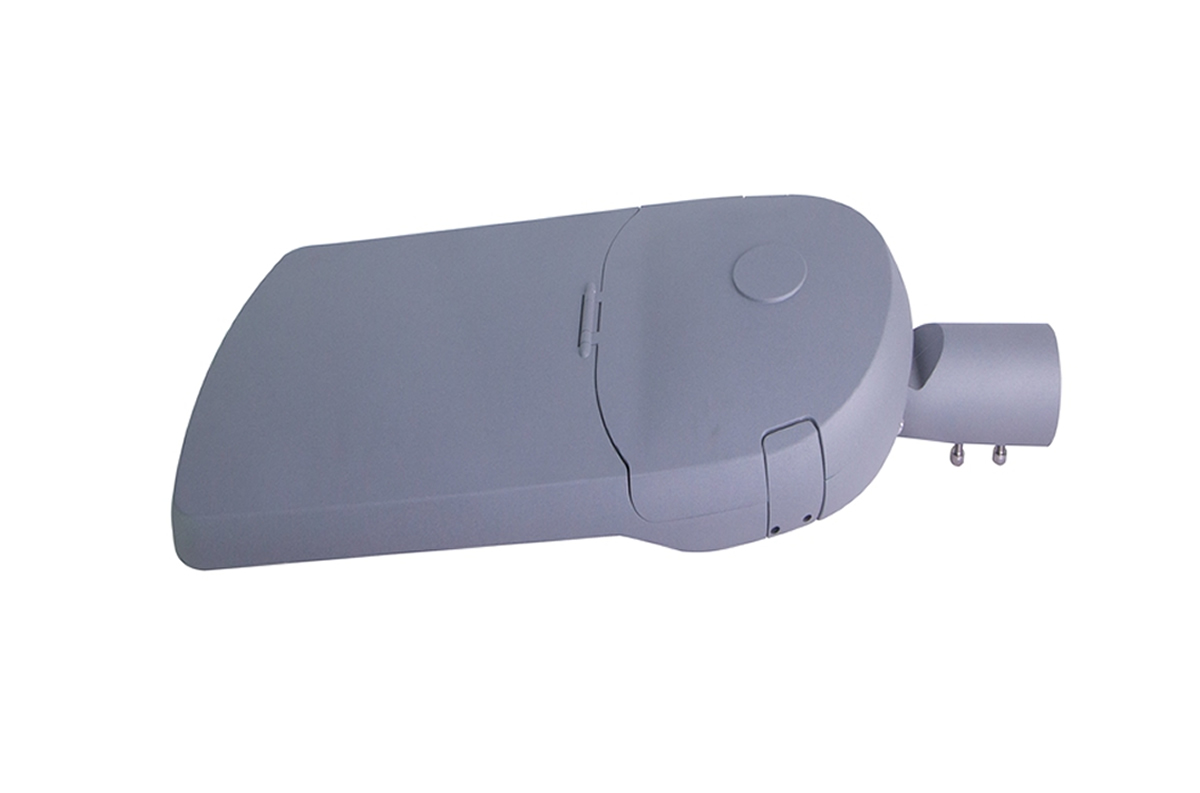

Product Code: CEPHEUS 150W LED Street Light | SL-F150W

Key Features

  • Professionally designed optical lens with beam angle 80×155°
  • The bracket is adjustable 90-180 degree, lamp head upward will offer wider lighting to the edge of the road
  • Heavy extruded aluminum alloy housing, multi ribs design for more efficient heat dissipation
  • Apply for unique surface treatment technology, well-decorated, easy to install, lower maintenance cost and wide in application.
  • Waterproof IP65

Product Description

Technologically Advanced, low profile all-purpose CEPHEUS LED Road Lights

Cepheus LED Street Lights are sleek, low profile LED luminaires designed to replace existing traditional such as mercury vapor (MV)and high pressure sodium (HPS) cobra head systems along residential streets, industrial roadways, and highways, parking lot lighting, pathway lighting, security lighting and storage area lighting.

Cepheus LED Street Light collection offers better safety, reliability, and quality of light than traditional HID roadway lighting. Built to order with your choice of one or two high-power LEDs, in a broad range of light distribution types, the Cepheus LED Street Light is suited for roadways, recreational areas, parking lots, bridges, and other high-traffic outdoor spaces.

Designed from the ground up as a totally optimized LED street and area lighting system, LED Street Light delivers incredible efficiency without sacrificing application performance. Beyond substantial energy savings and reduced maintenance, It achieves greater optical control when compared to traditional cobra head luminaires. It is the better alternative for traditional street and area lighting with quick payback and improved performance.

Specification

Lighting Performance

Colour TemperatureLumen OutputLEDCRIMinimum Lifetime
3000K, 4000K, 6000K19500lmPHILIPS SMD3030>8055,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver BrandPower Supply TypePower FactorInput Voltage
MeanwellConstant Current>0.9585-265 V AC

Operating Details

PowerAmbient Temperature Range
150W-40 to +50 °C

Physical Details

MaterialFinishIngress Protection
Aluminum + PCWhite,Silver,BlackIP65

Options

LED ColoursOptics
Warm White, Neutral White, Cold White80*155°

Packing Details

Quantity Per CartonCarton SizeCarton Weight
1 pcs73 x 36 x 20 cm7.5 kg

Applications

Mechanical Dimensions (Unit mm)

size-150w-led-street-light

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
